Getting Started
How to use ABD Composites: from defining materials through micromechanics to a full CLT laminate analysis, plus the theory behind every tool.
Overview
Engineers and students use ABD Composites to design and analyze fiber-reinforced composite laminates using Classical Lamination Theory (CLT). There are two ways to use it:
- Live calculator: Available on the website, no account needed. Use it for quick calculations and exploring laminate behavior.
- Full dashboard: Requires a free account. Lets you save materials, laminae and laminates, and run more detailed analyses.
The dashboard opens on your last edited laminate. New laminate builds a layup from a code such as [0/±45/90]s and one material. With no laminates yet, Open an example laminate shows a quasi-isotropic layup with its results.
The dashboard workflow has four steps:
- 1
Define materialsFiber + matrix properties
- 2
Build laminaMicromechanics prediction
- 3
Construct laminateStacking sequence
- 4
AnalyzeABD matrix + constants
Using the live calculator
The live CLT calculator needs no sign-up. It is for quick exploration of how layup parameters affect laminate stiffness.
- A default material is pre-loaded (typical CFRP ply properties).
- Enter custom ply properties (E1, E2, G12, ν12) if needed.
- Type a layup code such as [0/±45/90]s in the Layup code field. The ply table follows as you type.
- Set the number of plies, their angles, and thickness. The quick angle buttons (0, +45, -45, 90) set a ply angle in one click.
- Enable the symmetric layup option to automatically mirror the stacking sequence.
- The ABD matrix and engineering constants (Ex, Ey, Gxy, νxy) update in real time.
- Four result tiles sit above the matrix: Ex, Ey, total thickness and the number of plies.
- Copy ABD puts the matrix on your clipboard, ready to paste into a spreadsheet.
Dashboard: material management
The Library section holds your material properties. Three kinds are entered directly:
- Fiber materials: Longitudinal and transverse moduli (E₁f, E₂f), shear modulus (G₁₂f), Poisson's ratio, and density. Example: T300 carbon fiber, E-glass.
- Matrix materials: Young's modulus (Em), Poisson's ratio (νm), and density. Example: standard aerospace epoxy.
- Core materials: Shear modulus (Gc), through-thickness compressive modulus (Ec), density, and optionally shear and compressive strength (Fsu, Fcu), for use in the sandwich panel and sandwich beam. Example: Nomex honeycomb, Rohacell, Divinycell, balsa. Each core can carry a source citation so a handbook or datasheet value stays traceable.
Two more kinds are built rather than typed in: laminae, which the UD lamina and fabric builders produce from a fiber and a matrix, and laminates, which the laminate builder assembles from laminae. Both are saved to the same library and reused by every analysis tool.

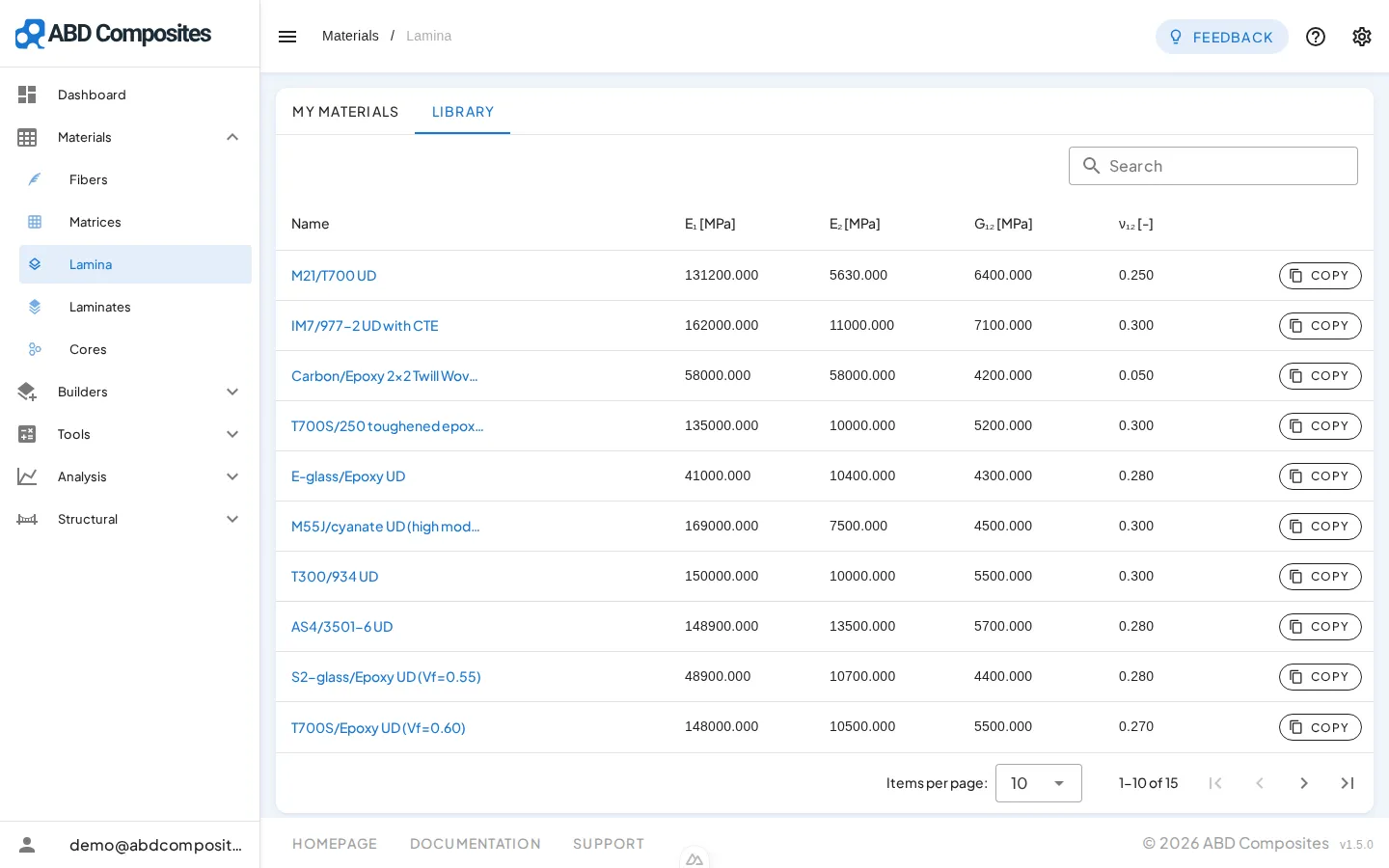

A standard library of commonly used materials (T300, E-glass, and standard epoxies) is pre-loaded into every account. Library items are read-only. Select Duplicate to edit to make your own copy, or add your own from scratch. Each list shows one column per property, with its symbol and unit in the header, and an info icon opens the definition. A property you have not entered reads Not set. The Laminates list shows a ply thumbnail, the number of plies, the thickness, the layup code and the classification (symmetric, balanced and so on) of each laminate. Previous and next buttons on every detail page step through the list in its default order. To delete several items, select their rows in My Materials and choose Delete. An item that another one uses stays, and a banner names it and says why. Properties display in your unit preference: the SI, Metric and Imperial presets fill in a sensible unit per quantity, so Imperial shows moduli in Msi and strengths in ksi. Until you pick a unit yourself, the dashboard starts in Imperial when your browser is set to the US, and in SI elsewhere. The Units tab on the account page lets you change the unit for any individual quantity (say Msi moduli with mm thicknesses) as your own Custom set. Values are stored unit-independent, so switching presets never changes your data.

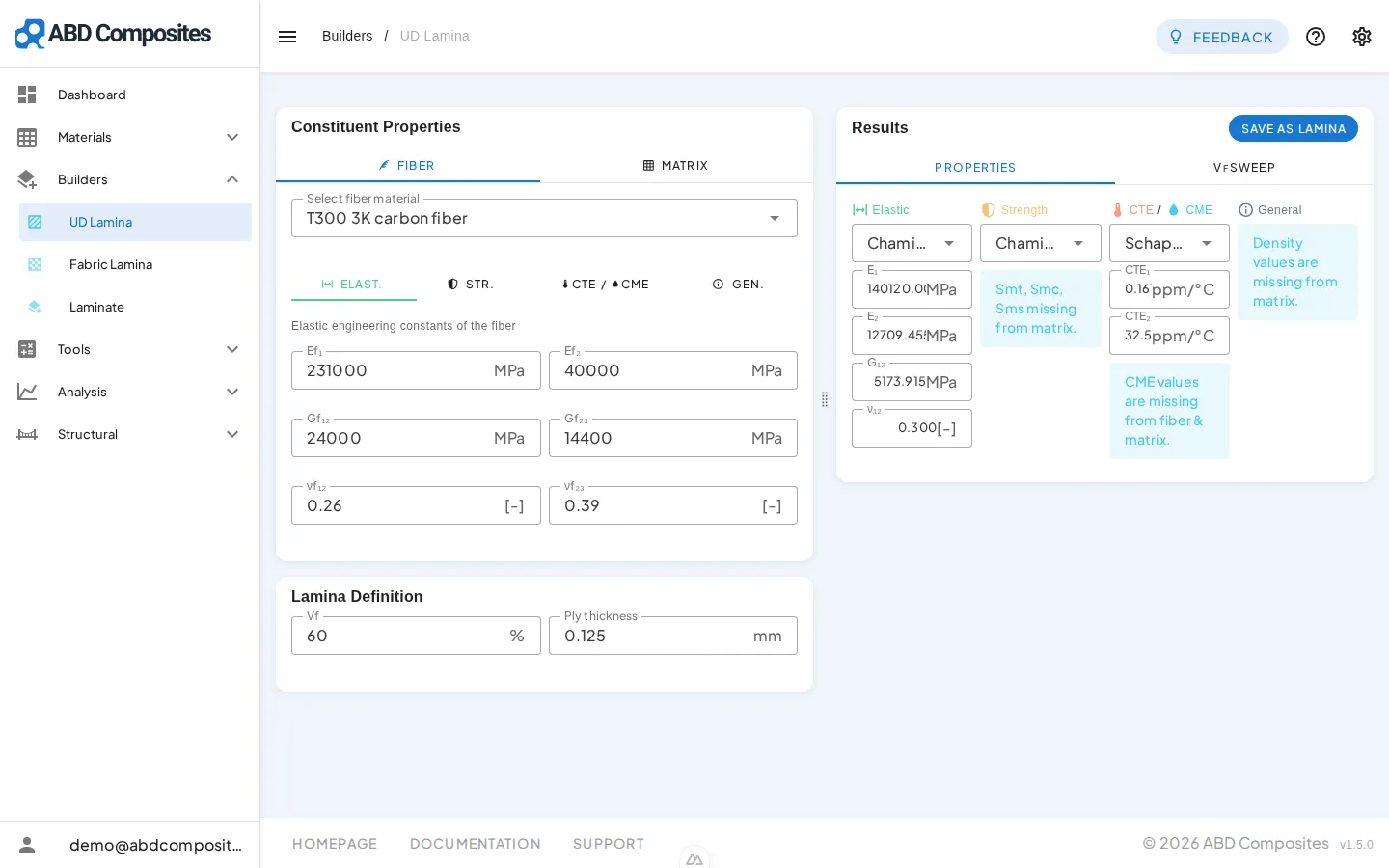

Dashboard: micromechanics (UD Lamina Builder)
The UD Lamina Builder, in the Ply Design group, predicts unidirectional (UD) ply properties from fiber and matrix constituent data. This is useful when you have material data sheets for the constituents but not measured lamina properties.
- Select a fiber and a matrix material from your library.
- Set the fiber volume fraction (Vf), typically 0.55-0.65 for aerospace laminates.
- Choose from six micromechanics models: Rule of Mixtures, Halpin-Tsai, Composite Cylinder Assemblage (CCA), Chamis, Hopkins-Chamis, and Puck. Which model is most accurate depends on the property.
- Save the predicted ply properties as a new lamina for use in the laminate builder.

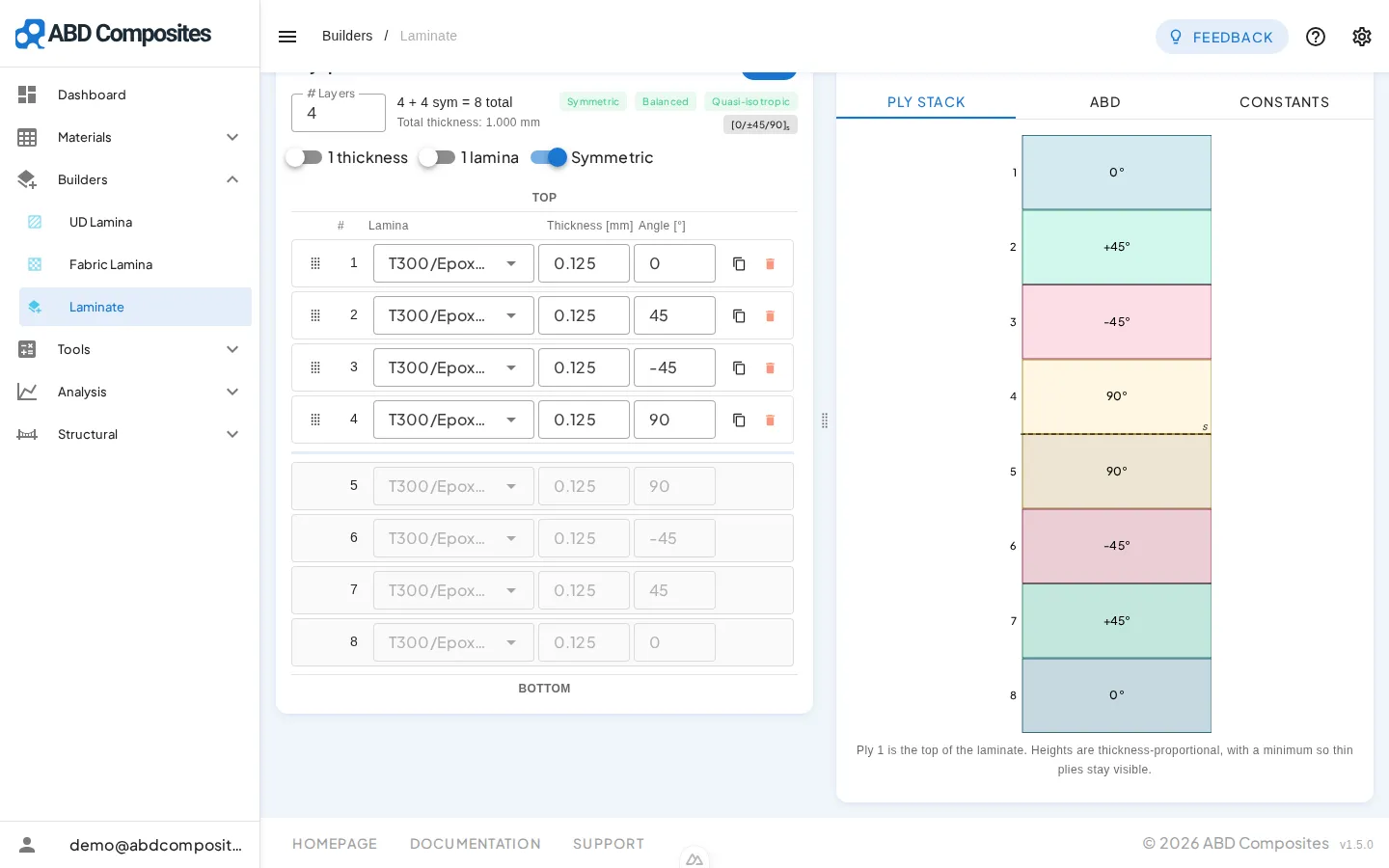

Dashboard: Laminate Builder
The Laminate Builder lets you define stacking sequences from your saved lamina.
- Type a layup code such as [0/±45/90]s in the Layup code field. The ply table follows as you type, and editing the table rewrites the code.
- Each ply has its own lamina field. By default ply 1 sets the lamina and thickness for every ply. Turn off Same lamina or Same thickness in Layup options to set them ply by ply.
- Set the orientation angle (in degrees) and thickness (in mm) for each ply. Select a ply to get 0, +45, -45 and 90 buttons.
- The status tag beside the laminate name shows Saved, or how many changes are not saved.
- Open Load laminate to search your saved laminates and the library.
- Use the symmetric layup option to mirror the stacking sequence about the midplane, which gives [B] = 0 and removes extension-bending coupling.
- Drag and drop to reorder plies.
- Save named laminate configurations for later comparison and analysis.
Layup options
Everything you set once and then leave alone sits in a collapsible Layup options panel, so the ply table keeps the space. The panel header carries a chip for each option that is currently active, so nothing is hidden while its effect is on screen.
- 1 thickness and 1 lamina: type the value once at the first ply and every ply below inherits it.
- Rotate stack: add one offset to every ply angle at once, with -45, +45 and +90 presets, a slider and a typed value. Angles are wrapped back into -90 to 90, and one button clears the rotation.
- Reverse stack: turn the laminate over. In-plane and bending stiffness are unchanged and every coupling (B) term changes sign.
- Paste, Copy and Clear: move a layup in or out as JSON, or start again.
Rotate and Reverse edit the ply angles and the ply order themselves rather than storing a transform, so a saved laminate always holds exactly what the table shows.

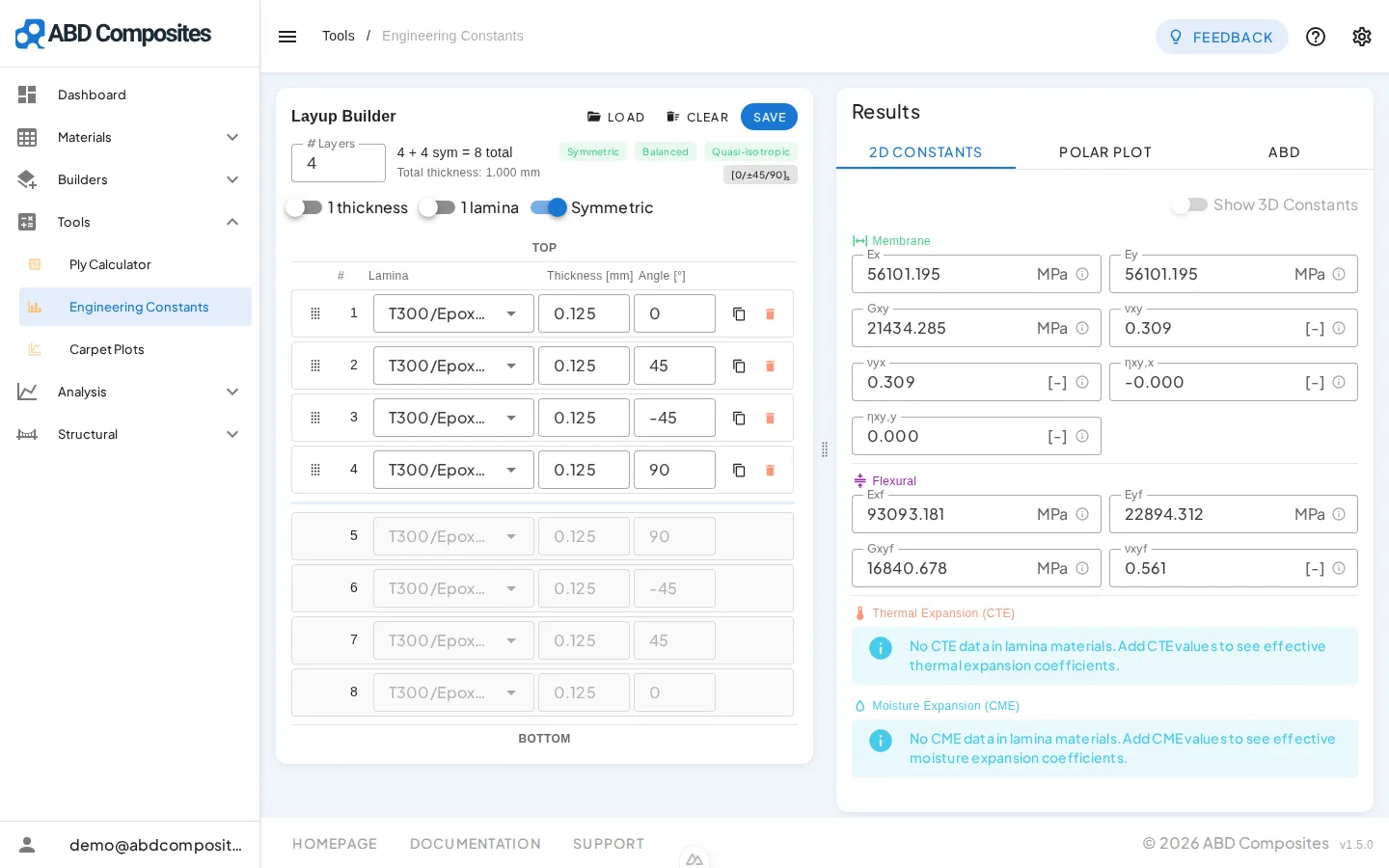

Dashboard: laminate analysis
The pages in the Laminate Design and Laminate Analysis groups run the full CLT calculation on your laminate and show:
- ABD matrix: Full 6×6 constitutive matrix (extensional, coupling, and bending stiffness submatrices)
- Compliance matrix: Inverse of the ABD matrix. Relates strains and curvatures to applied loads
- Engineering constants: Effective Ex, Ey, Gxy, νxy derived from the compliance matrix
Theory documentation
Classical Lamination Theory, from fiber and resin properties through to a structural check, written to be read in order. Each page explains the concepts and gives the governing equations without turning into a full derivation. Working on something specific? Jump straight to it.
01-04 Material: fibers and resin to a ply
Everything downstream needs ply properties. These four pages are where those numbers come from.
05-07 Laminate: plies to stiffness
Stack plies at different angles and you get a material you can tailor. The ABD matrix is how that is described.
08-10 Load response
Apply something to the laminate and find out what it does, first as a whole and then ply by ply.
11-13 Failure
Ply stresses compared against ply strengths, first for the onset of damage and then all the way to collapse.
14-21 Structures
From a laminate to a part with real dimensions.
22-24 Joints
What a hole, a fastener or an adhesive bond does to the strength of a laminate.
Ready to start?
Try the live calculator now, no account needed. Or create a free account to access the full dashboard with material management, micromechanics, and saved laminates.
